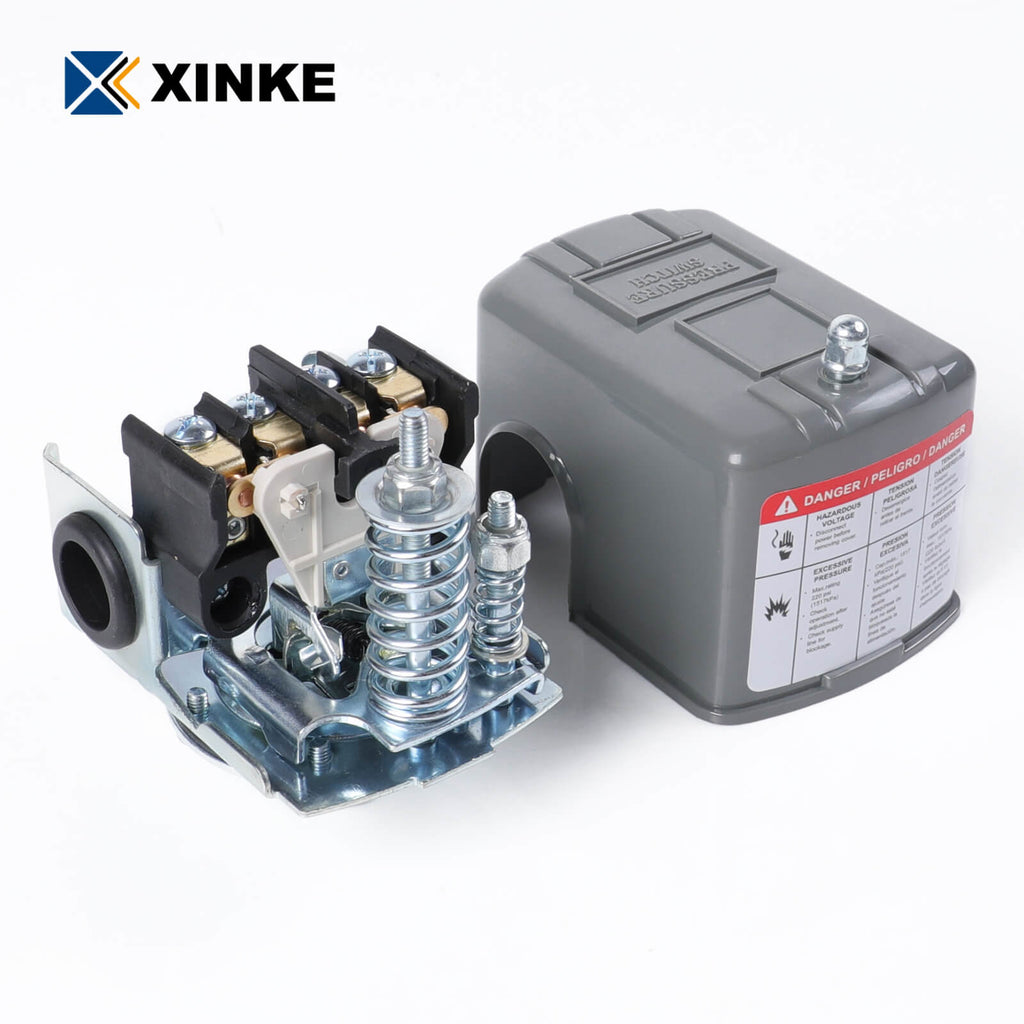

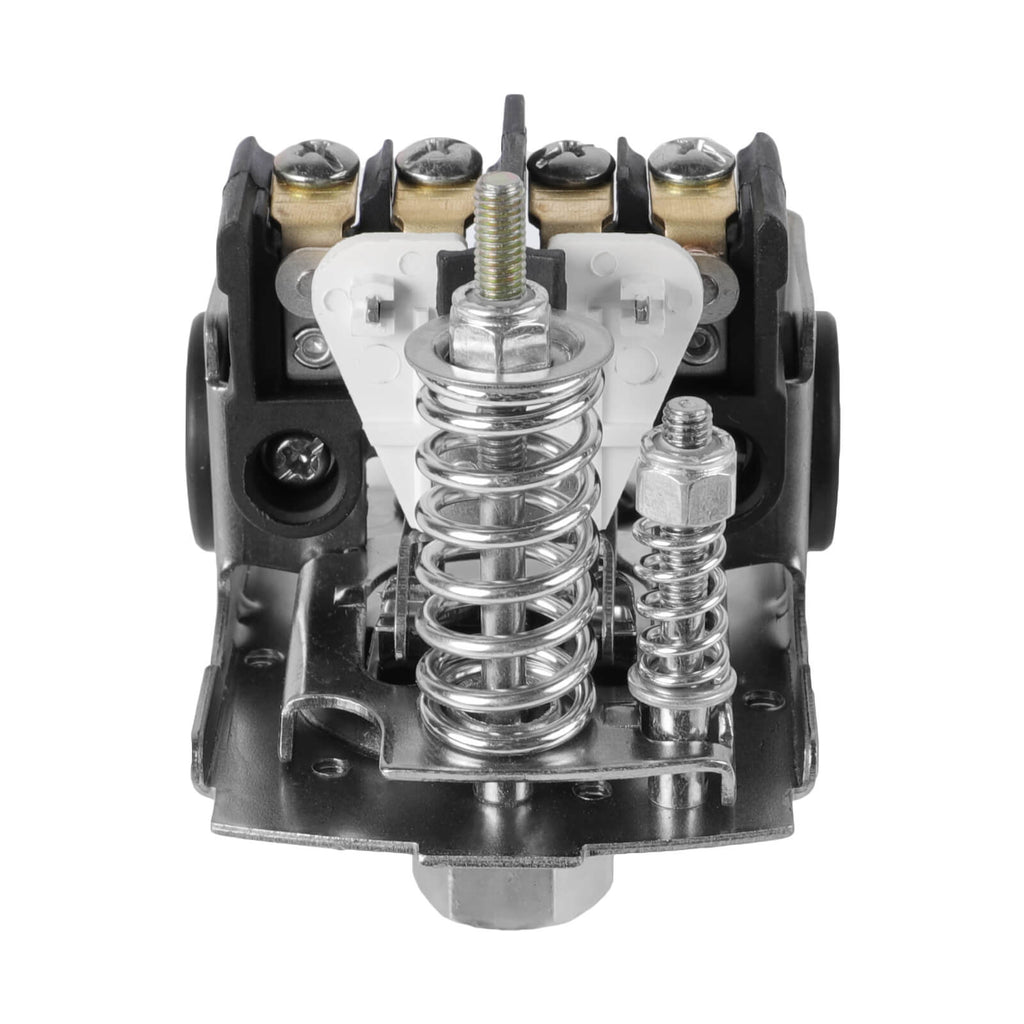

Adjustable Pressure Switch Well Water Pump Control with 2 Spring Pole

Feature:

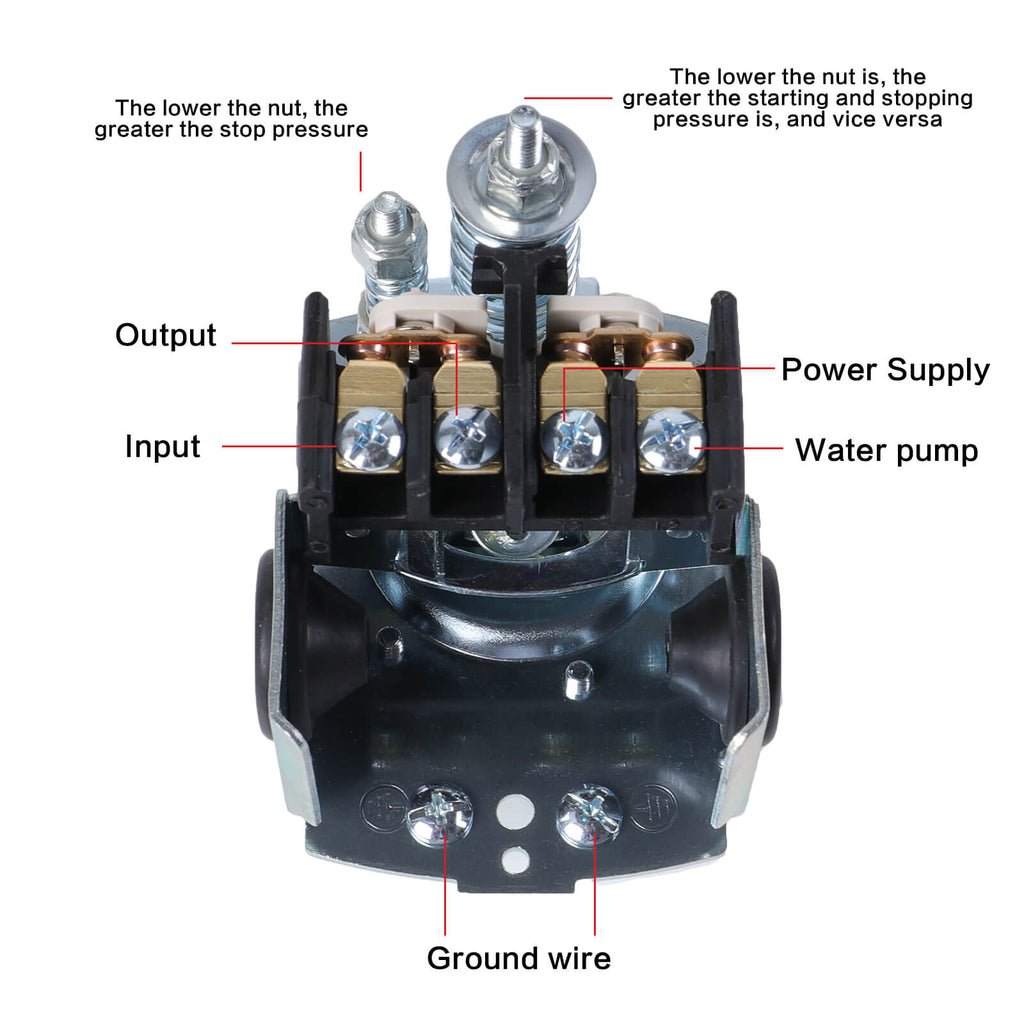

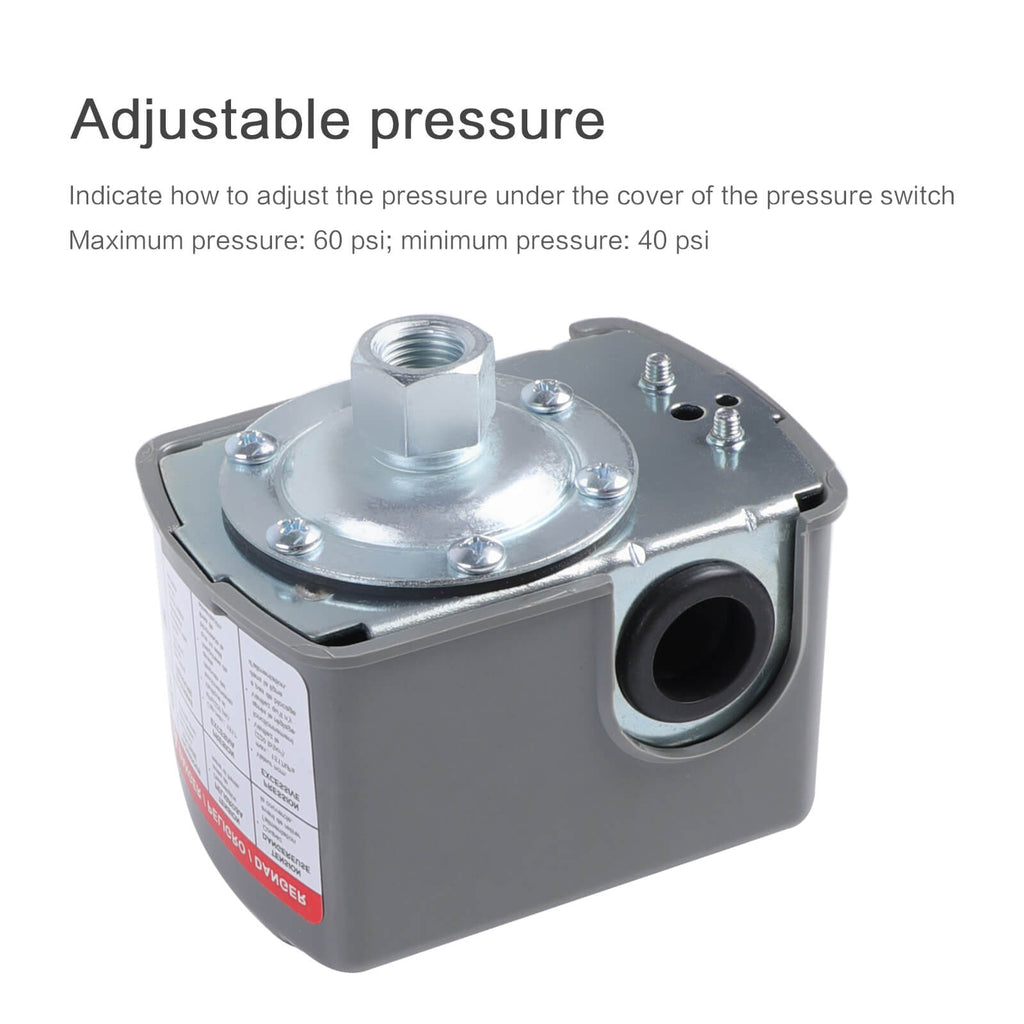

1. Pressure Adjustable: The water pump pressure is adjustable through this switch and you can set the adaptable pressure as you the work needs.
2. Pressure Control: This is a water pump pressure control switch for perfect pressure control. Easy to install, can be used for a long time.
3. Durable Material: Our water pump pressure control switch is made of high-quality materials, it features strong strength and long durability.

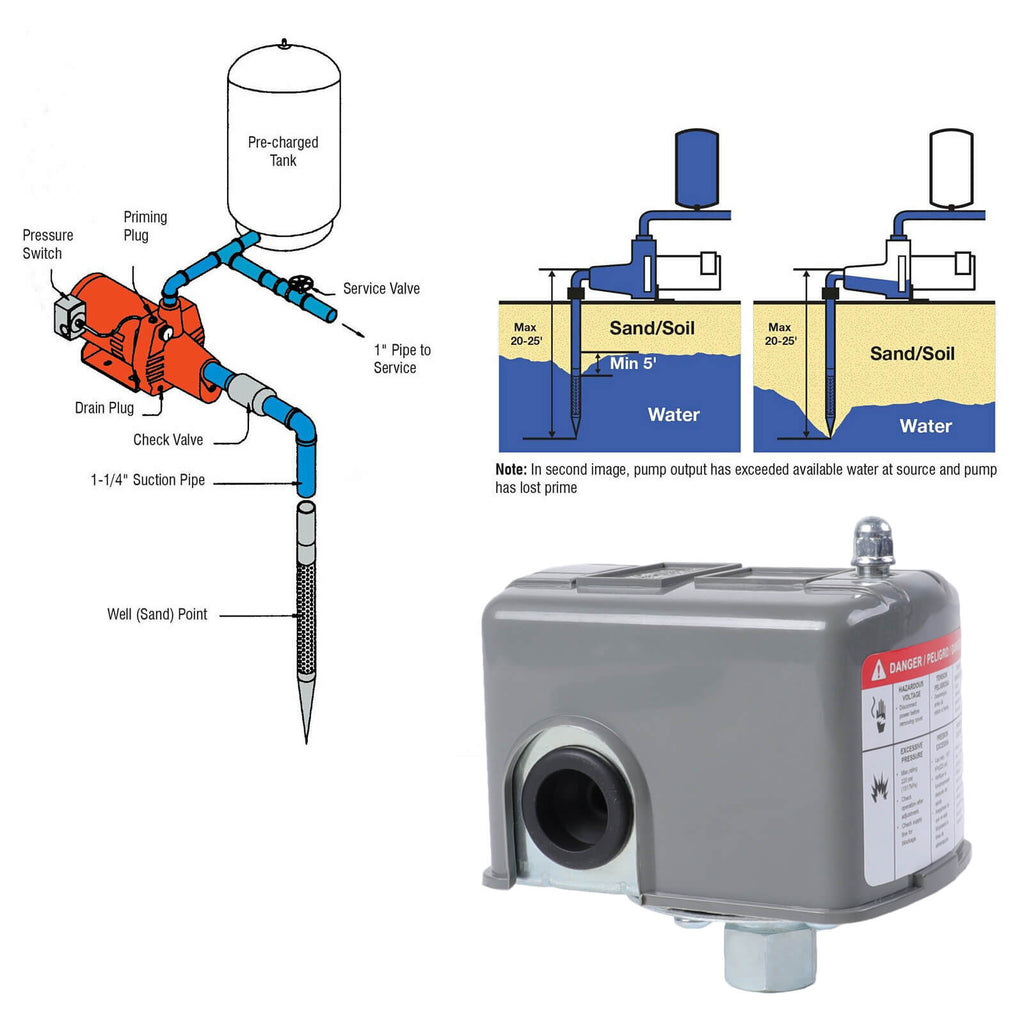

4. Fit for: Suitable for most water pumps, such as self-priming water pumps, Automatic pumps, injection water pumps, jet pumps, garden water pumps, clear water pumps, etc.

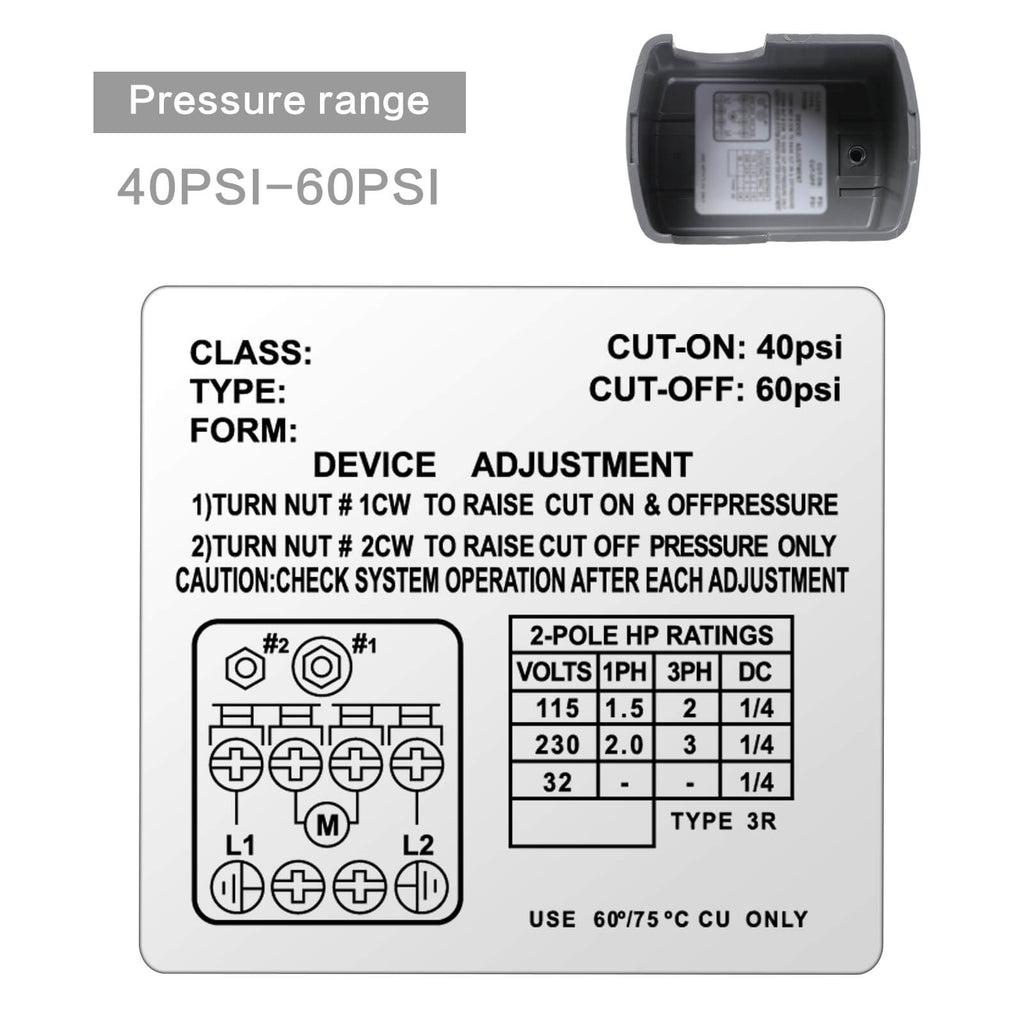

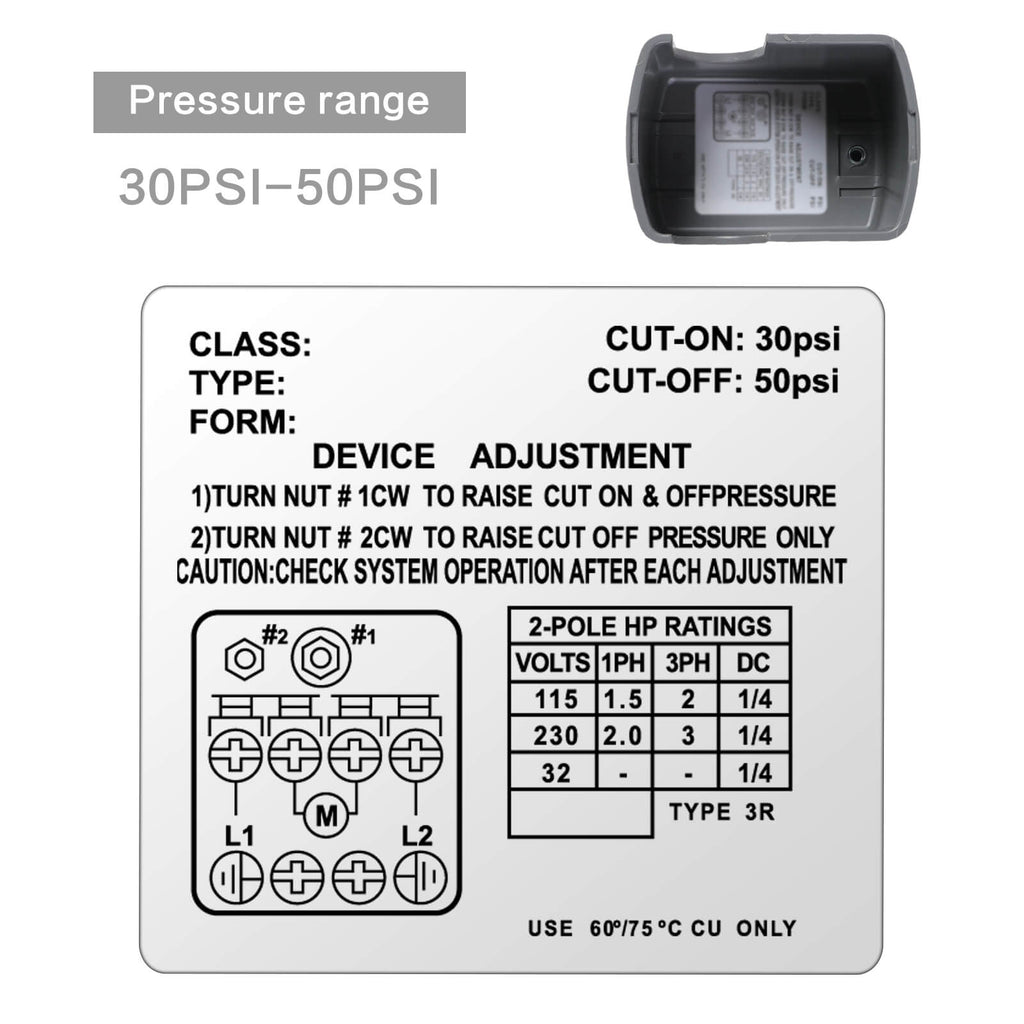

5. Instructions: 1 phase or 3 phase (15 or 230 volt / at 115 volt 1 phase it will handle 1.5 hp, at 230 volt 1 phase it will handle 2 hp, and at 230 volt 3 phase it will handle 3 hp.). Preset on pressure: 20 psi/ the contacts close at this pressure to send power to the motor/ pump. Preset off pressure: 40 psi/ the contacts open at this pressure to shut power off to the motor/ pump. 15 or 230 volt / at 115 volt 1 phase it will handle 1.5 hp, at 230 volt 1 phase it will handle 2 hp.

Specification:

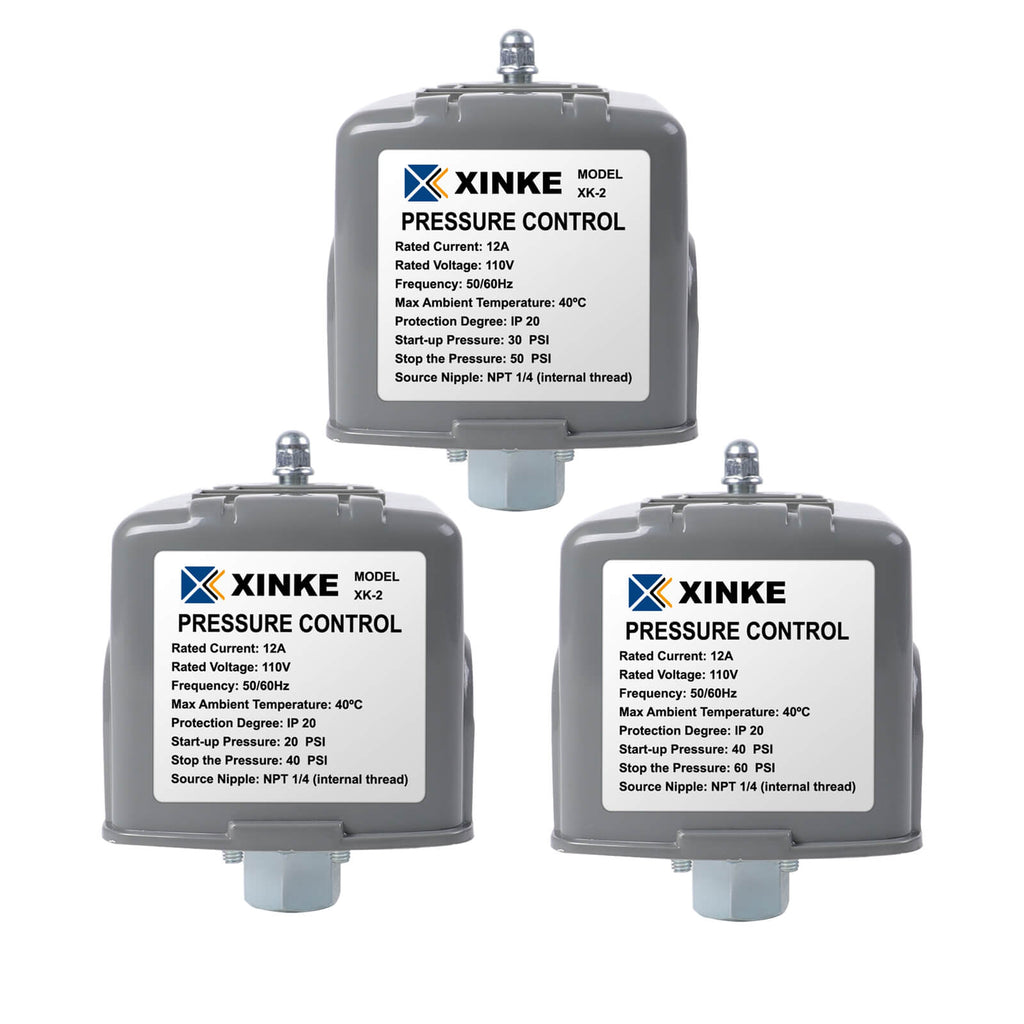

Type:20-60 PSI Well Water Pump Pressure Control Switch

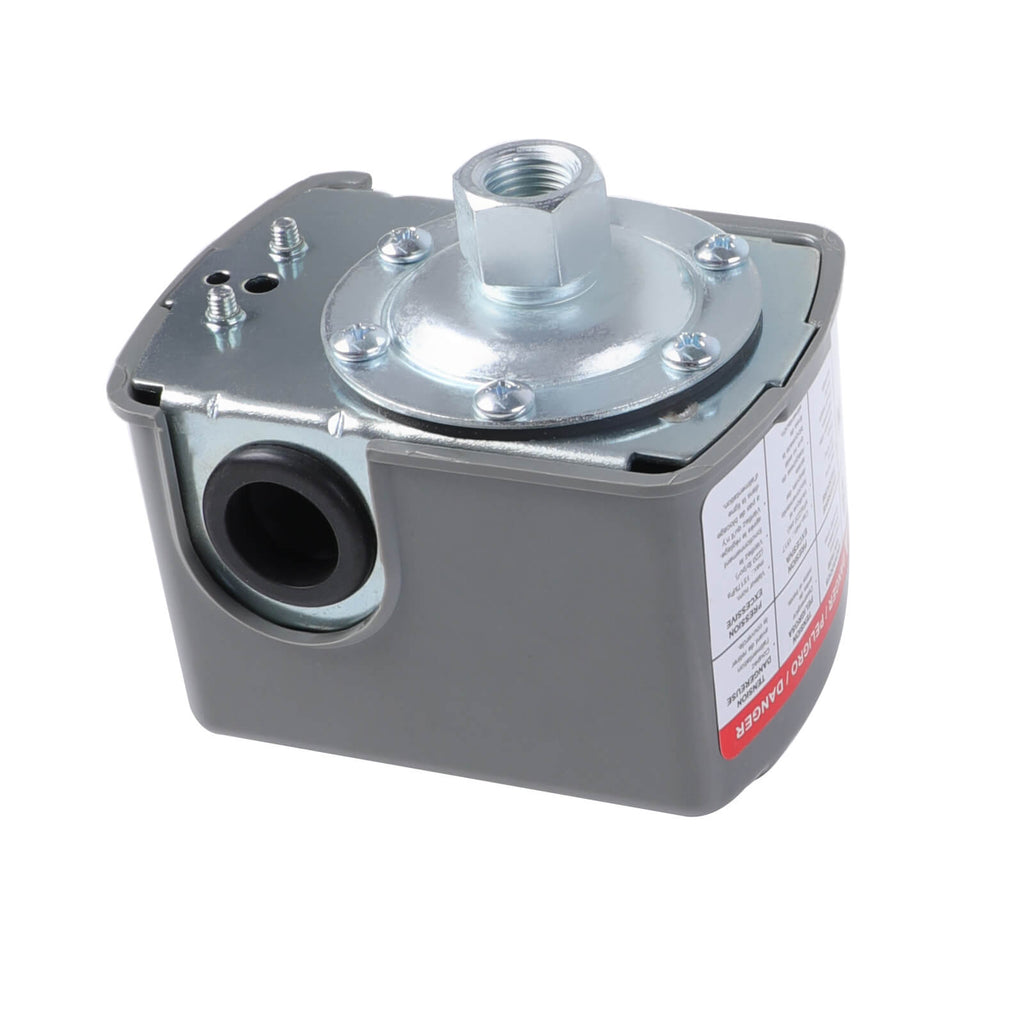

Material: Plastic shell & Cast Iron
Color: Gray
Max pressure: 60 psi
Min pressure: 20 psi
Net Weight: 0.5g
Frequency: 50/60Hz
Max. Current: 12A
IP Grade: IP20
Max. Operating Temperature: 60℃

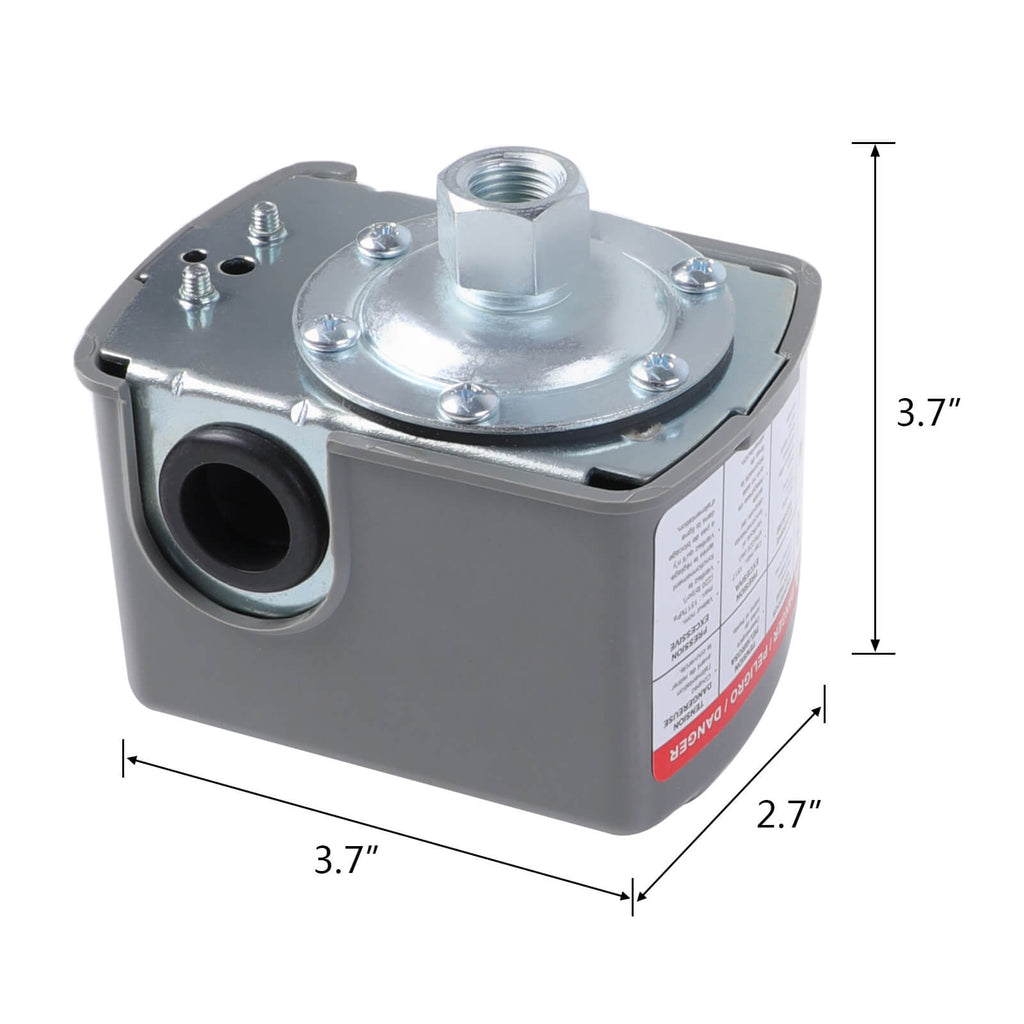

Size: Approx. 71*98*66mm

Package Included:
1 x Water Pump Pressure Control Switch（Please choose the type you prefer）
